Custom aluminium laser cutting in Bình Dương
Aluminium laser-cut to your drawing or design file, from thin sheet for facades and perforated panels up to 25 mm plate. One sample sheet to full production runs. The shop is in Thủ Dầu Một Ward, Ho Chi Minh City (formerly Bình Dương Province), and delivers to your door.
From thin facade sheet to 25 mm plate
Thin sheet needs fine, even cuts for patterns and perforations; thick plate needs the power to get through. We cut both, on a TRUMPF 6 kW fiber laser.

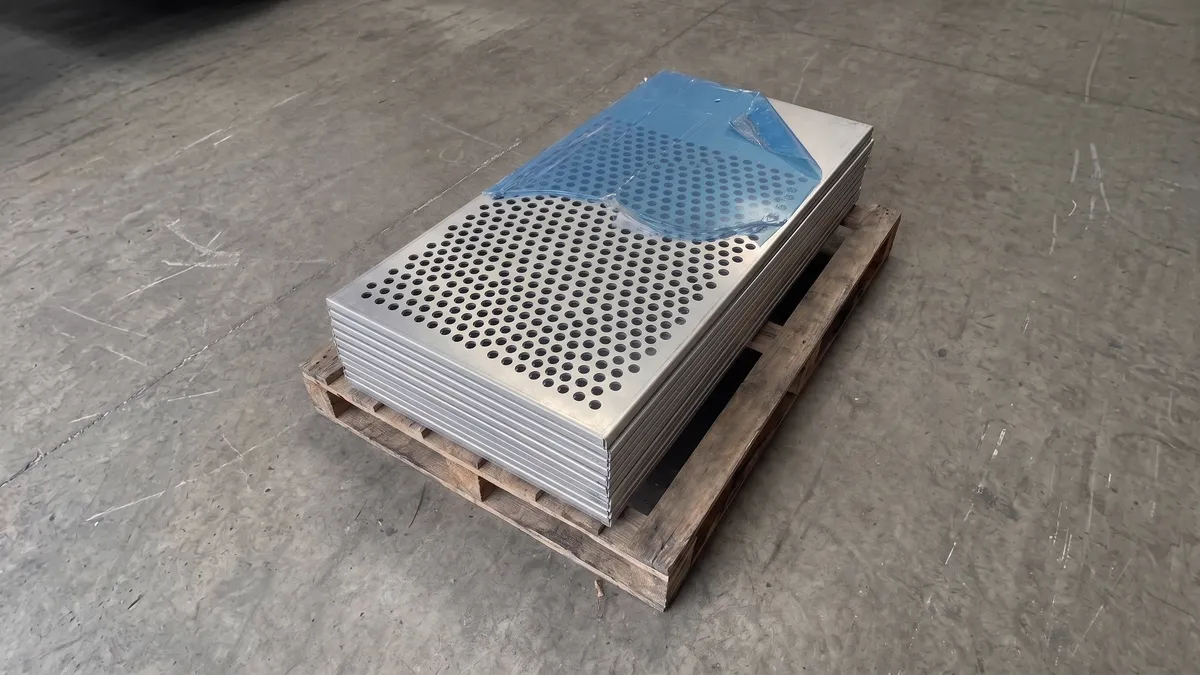

- PHOTO · Perforated aluminium facade panels
Thin sheet for facades
Perforated panels, patterns and lettering for building facades, shopfronts, decorative screens and signs. Send the design file and we cut it as drawn, from a few panels to a whole project.
Typical parts
- Perforated facade panels
- Patterned screens and louvres
- Aluminium letters and signs

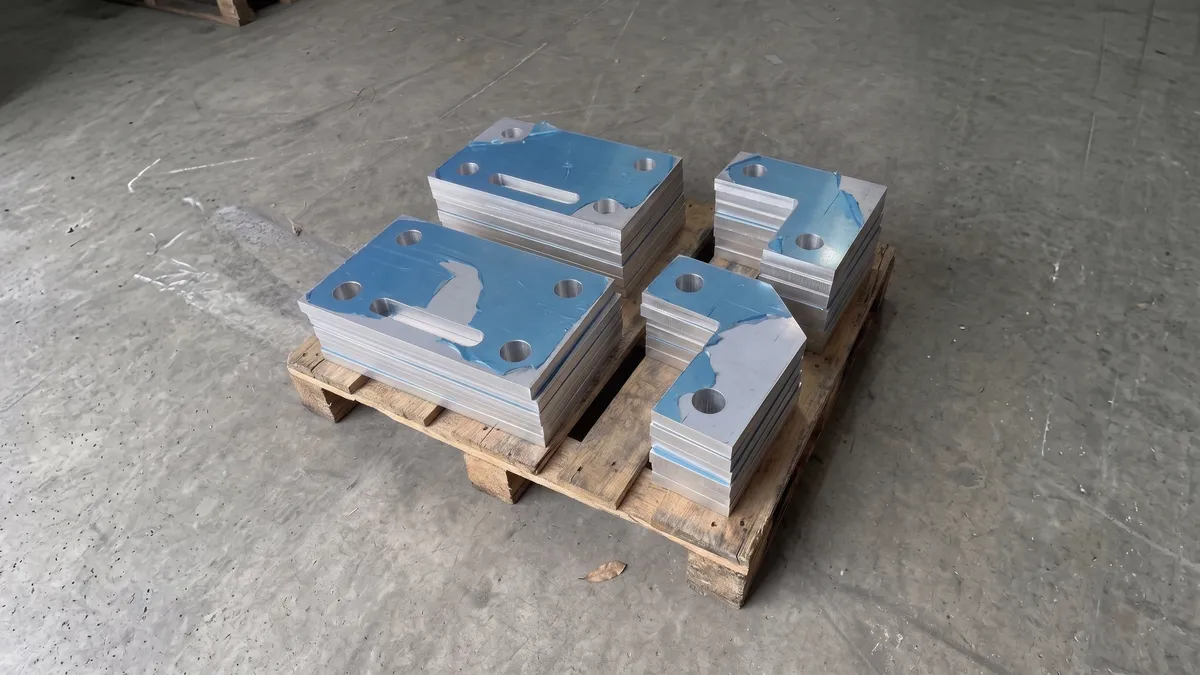

- PHOTO · Thick aluminium plate, laser-cut
Plate up to 25 mm
Base plates, flanges, fixture plates and machine parts cut from aluminium plate up to 25 mm thick, straight from your file with no tooling to make.
Typical parts
- Base plates and flanges
- Fixture and jig plates
- Machine parts to drawing
The aluminium grades we cut
The grade decides how hard the part is, how well it bends and what it costs. Not sure which one? Tell us where the part will be used and we will suggest one.
| Grade | What it is |
|---|---|
| Aluminium 1050 | A 1xxx grade, almost pure aluminium. Soft, easy to bend and good against corrosion, but not strong. Suits: Decorative panels, facades, parts that carry no load |
| Aluminium 3003 | Alloyed with manganese, so stronger than the 1xxx grades while still easy to bend and good against corrosion. Suits: Cladding, boxes, channels, covers |
| Aluminium 5052 | Alloyed with magnesium: strong, and good in damp and salty air. Bends well. Suits: Outdoor parts, equipment housings, facades |
| Aluminium 6061 | Hard and strong, the choice for load-bearing parts and thick plate. It cracks if bent too tight, so it needs a generous bend radius. Suits: Base plates, fixtures, machine parts |
Machines and bed size
- Lasers
- TRUMPF 6 kW · Oree 1.5 kW
- Bed
- 3,000 × 1,500 mm
- Aluminium
- Up to 25 mm
- Files
- DXF · DWG · STEP · AI · PDF
How an aluminium order runs
You know the price and the delivery date before we cut the first sheet.
- 01
Send a file or drawing
DXF, DWG, STEP, AI or PDF. For facade patterns, send the original design file.
- 02
Quote within 24 hours
Price, grade, thickness and delivery date, with suggestions to bring the cost down.
- 03
Approve a sample
For a production run or a large project we cut a sample first, and cut the rest once you approve it.
- 04
Cutting and delivery
Cut in our shop and delivered by our own van; national carriers cover the rest of Vietnam.
Send your aluminium drawing for a quote
Add the grade, thickness and quantity if you know them. For facade patterns, attach the design file. No drawing yet? Describe the part and we will call you back.
Request a quote
Replies within one business day. Your files stay confidential — NDA on request.
Or call +84 948 684 939
Questions we get asked
Send the drawing with your question — fastest way to a real answer.
01 How thick an aluminium plate can you cut?
Up to 25 mm, on a TRUMPF 6 kW fiber laser with a 3,000 × 1,500 mm bed. We cut thin sheet for facades and signs too.
02 Can you cut perforated and patterned facade panels?
Yes. Send the design file (DXF, DWG, AI or PDF) with the panel size and quantity. We check the file before cutting and tell you about any line too fine or holes too close together.
03 Which aluminium grades do you cut?
1050, 3003, 5052 and 6061. Not sure which to use? Tell us where the part goes and we will suggest one.
04 Will you cut just a few sheets?
Yes, even a single sample sheet. The more you order, the lower the unit price, because parts share sheets in the nest and the machine setup is spread over more pieces.
05 Can the parts be bent, welded and coated afterwards?
Yes, on the same order. Bending and welding happen in our shop; powder coating goes to our partner coating line and comes back to us before delivery. You deal with one supplier.
06 Where is the shop, and do you deliver?
At Số 123 Nguyễn Văn Tiết, Thủ Dầu Một Ward, Ho Chi Minh City (formerly Hiệp Thành Ward, Thủ Dầu Một, Bình Dương Province). Our van delivers across Ho Chi Minh City and the nearby industrial parks; national carriers cover the rest of Vietnam.
More on laser cutting
Notes from the shop on cutting patterns, sending files, nesting and tolerances.
- Finishing · 5 min read Laser-cut art and signage: the fine detail the beam can (and can’t) hold Screens, signs and filigree live or die on detail. Where the beam holds a crisp line, where it needs a bridge.
- Design for MFG · 6 min read The three design rules behind 90% of rejected DXFs Tiny holes, features hugging the edge, and "sharp" inner corners — why the physics says no, what the beam actually does, and the one-line fixes that keep your quote from bouncing back.
- Design for MFG · 5 min read Anatomy of a nest: fitting your parts on a sheet to cut cost Half the price of a laser-cut part is the sheet it sits on. How a good nest packs parts, shares cut lines and batches jobs.
- Design for MFG · 7 min read Kerf and cut tolerance: how accurate a laser really is The beam has a width and the cut edge is not a perfect line. What kerf is, why the machine compensates for you, the tolerance a fiber laser holds, and where the last tenth of a millimetre starts to matter.
Cut, then finished on the same order
Laser-cut aluminium is bent and welded in our own shop; powder coating, when a part needs it, goes to our partner line and we handle it. You deal with one supplier.
Sheet laser cutting
TRUMPF 6 kW and Oree 1.5 kW. The service page has the full machine specs and the thickness table for every material.
02CNC bending

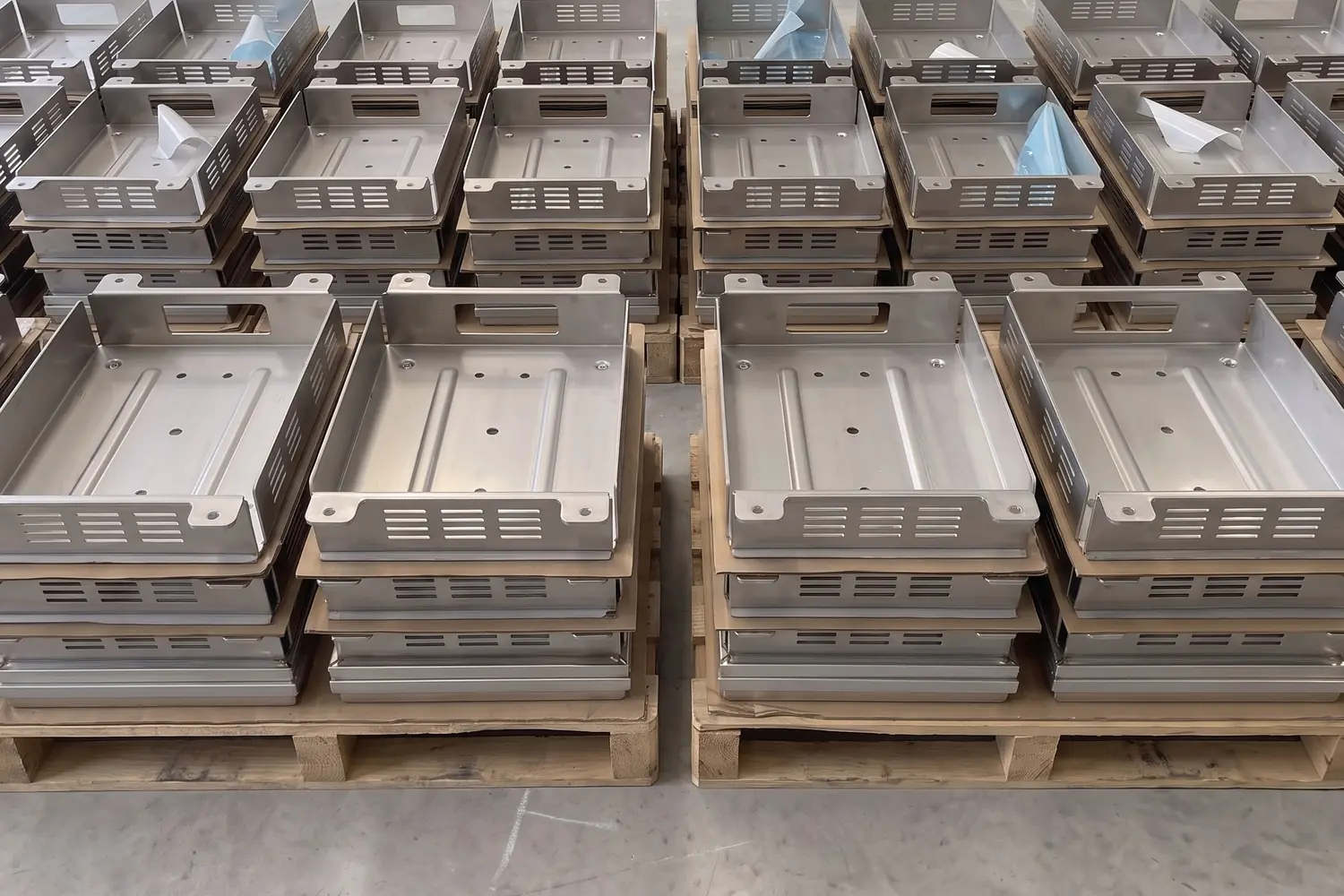

Four press brakes, 36–250 t. Cut aluminium blanks are bent into boxes, channels and covers to your drawing.
03TIG and laser welding
TIG, plus 1.5 and 3 kW handheld laser welding. Cut and bent parts are welded into finished assemblies.
04Powder coating
At our partner coating line. Parts go out and come back on the same order.
Send a drawing today, get a quote within 24 hours
Send files or photos through the form, by email or on Zalo 0948 684 939. The quote comes with a delivery date.
