Hardware in sheet: clinch nuts, countersinks and tapped vs clearance holes
Thin sheet has almost no thread to grip. How to put a strong, reusable fastener into it — self-clinching hardware, weld nuts, countersinks — and when a tapped hole is a trap.
Thin sheet has no thread to grip
Tap an M6 thread into 1.5 mm sheet and you get about one turn of engagement — enough to strip the first time someone does the bolt up properly. Sheet metal is strong in the plane and thin through it, which is exactly wrong for holding a thread. So we don’t rely on the sheet’s thickness; we add the thread as a piece of hardware.
Use self-clinching hardware

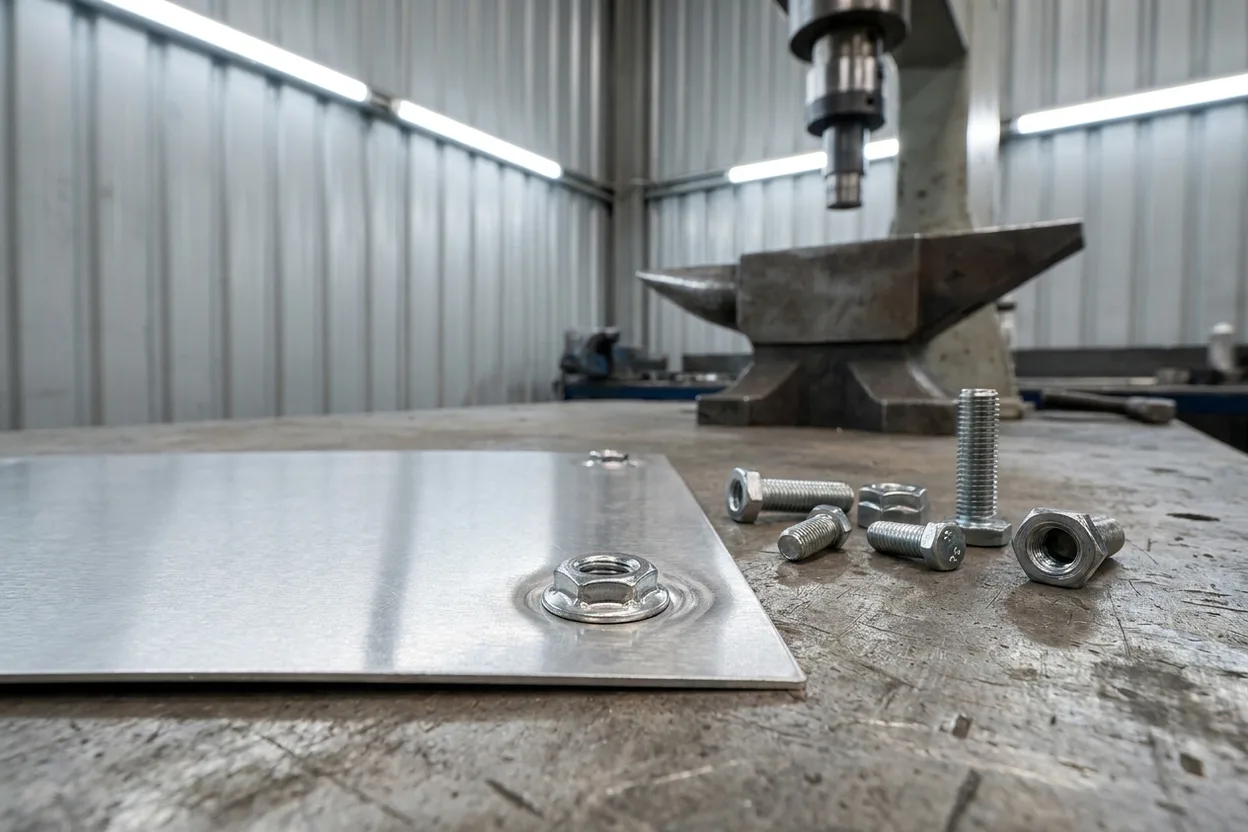

A self-clinching (PEM-style) nut or stud is pressed into a punched hole, where it cold-flows the sheet into a groove and locks in flush. The result is a full-depth thread in thin material that won’t spin or pull out, added after cutting and before finishing. It’s the default answer for a reusable fastener in sheet — panels, enclosures, brackets that get serviced.
Weld a nut where clinch won’t do
For heavier loads, thicker plate, or where a boss needs to stand proud, a weld nut (or a machined boss) welded to the part gives a rugged, permanent thread. It costs a weld and a little heat, so it’s not the first choice for a thin panel — but for a structural fixing it’s the strong one.
Countersinks want thickness
A countersunk screw sits flush by cutting a cone into the material — but a full countersink needs enough thickness to hold the cone. In thin sheet there isn’t room, so the screw head stands proud or breaks through. Below about 2 mm we dimple instead — form a matching cone into the sheet so the head still sits flush without removing metal there isn’t.
Which fastener for which job
| NEED | IN THIN SHEET | IN THICK PLATE |
|---|---|---|
| Reusable thread | Self-clinch nut | Tapped hole |
| Heavy / structural | Weld nut | Tapped or weld nut |
| Flush screw head | Dimple | Countersink |
| Clearance only | Punched hole | Punched hole |
Tapping is fine once the material is thick enough for a few full threads — roughly the thread’s own pitch, several times over. Below that, add hardware.
